Help - RG wiring w/push-pull split, achieving the Axis SS split inner coils mod

[Ivan75]

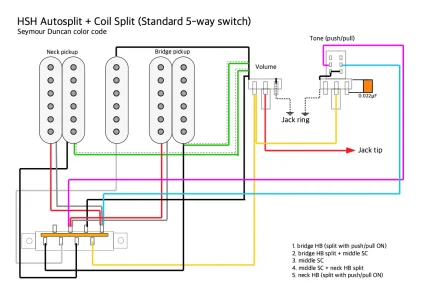

OK, I need some help here. This is the current situation, the 5-way switch is the CRL, and the pickups are all DIMarzio (Evolutions with True Velvet RWRP middle), so note the color codes depicted here are S. Duncan.
My question is, what exactly do I need to do to retain all the switching (except the bridge split with push/pull, I don't use it), to get the humbuckers split inner coils in parallel in bridge position, position 1, when the pot is pulled up?
So, again, in position 1, I need the bridge inner coil + neck inner coil to be activated when the pot is pulled, like the EBMM Axis SS. If the switch is in position 5 (the neck), pulling the pot gives the split to inner coil ONLY, like it is now.
Thanks, everyone!



[switchman]

Off the top of my head Ill say it should be do-able with a Super Switch but not with the standard CRL 5 way switch. Would have to diagram it out to be sure.

As its drawn this is probably meant for the coil magnet polarity to be reading left to right SN-S-NS to get p2&4 hum canceling. So inner coils in parallel can't be hum canceling because they're same polarity.

Do you actually use middle pickup by itself? Might be easier to rework this to remove that if you don't



[Ivan75]

Hey, thanks for responding!
Actually, I really hate the middle pickup used alone here. And I don't mind not having the noise cancellation.
