How to reverse EMG volume pots (left handed)?

[RocknRoller]

Hi Gents.

Is there a way to reverse EMG quick connect volume pots for us fortunate left handed folk?

I notice they have left handed pots available on their website (https://www.emgpickups.com/parts/pots/25k-vol-lh.html) and was wondering what the difference is, they must be internally wired the other way???

Is there a way to achieve this with the standard pots? https://www.emgpickups.com/parts/pots/25k-volume.html
I have already tried reversing the quick connect lead polarity at different connections in the hope to reverse hot and ground to the pot however have not had any luck.



[Artie]

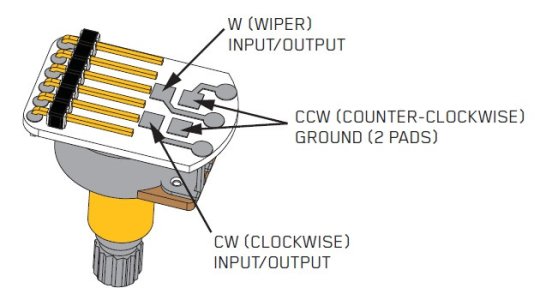

You would need to use the solder pads, and reverse the connection to the CW and CCW terminals. Problem is, if it's audio taper, your taper will be backwards.



[Artie]

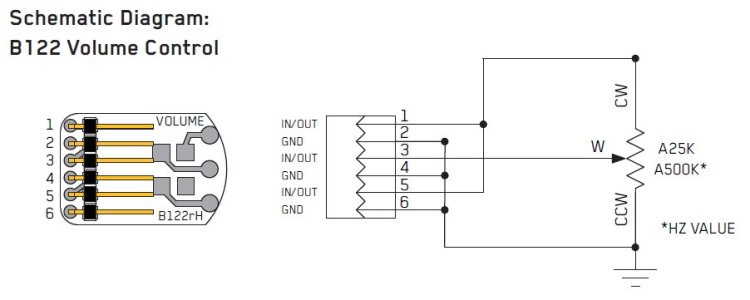

Then again, if really didn't want to solder, you could use three of the dual-pin connectors, and put one on pins 1 & 2 for ground. Pins 3 & 4 for output, and Pins 5 & 6 for input.



[RocknRoller]

Thanks ArtieToo.
Ill give it a go.



[Artie]

Cool. Let us know how it works out.
