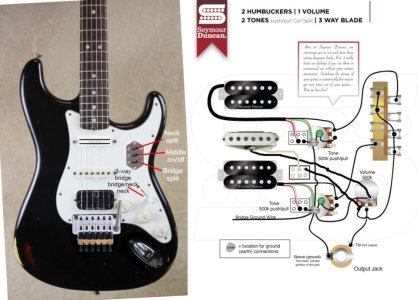

Hello! So I think I'm finally gonna get around to doing the custom wiring job I want to do, and found a diagram that closely fits what I need. H(S)H, 1 master volume, neck tone and bridge tone, and individual coil splits for each humbucker. The middle pickup is to be toggled individually by another separate switch, turning it on regardless of the blade switch position. I added that switch and the middle single coil to the diagram, and was just wondering if I "wired" it correctly? And I won't be utilizing push/pull pots, but rather the individual switches as mentioned before, and as shown in the picture next to the diagram. Am I right in assuming the individual switches would be wired the same way they would be in the push/pull pot configuration? Thanks in advance!
