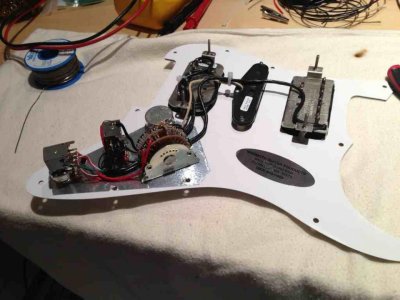

Pickguard is all wired up!
Pickguard is all wired up!
ratherdashing
Kablamminator
Re: Lockwire Rosa - custom built for me by pinto79 - progress thread

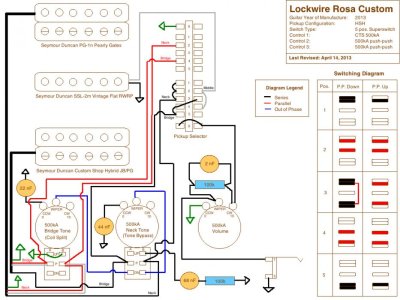

Here's the wiring diagram. Click to embiggen.
Pretty complicated, but in practice it's fairly intuitive. It behaves like a two humbucker guitar + Strat notch positions with the PP's down.
The bridge PP splits the humbuckers regardless of switch position, which makes it more Strat-like. There is no middle by itself, but that is far and away my least used switch position (I have another Strat that has middle by itself if I really need that tone).
The neck PP is an interesting idea I had. It bypasses the tone controls, and on the neck pickup it hard-wires a 68nF cap with a 100k resistor. With the PP up, it should brighten up the bridge pickup, and give the neck pickup a really round jazzy tone. I was inspired by the tone switch on my Duo Jet. With the PP down, I have a 22nF on the bridge tone control, and a 47nF on the neck.
Here's the wiring diagram. Click to embiggen.
Pretty complicated, but in practice it's fairly intuitive. It behaves like a two humbucker guitar + Strat notch positions with the PP's down.
The bridge PP splits the humbuckers regardless of switch position, which makes it more Strat-like. There is no middle by itself, but that is far and away my least used switch position (I have another Strat that has middle by itself if I really need that tone).
The neck PP is an interesting idea I had. It bypasses the tone controls, and on the neck pickup it hard-wires a 68nF cap with a 100k resistor. With the PP up, it should brighten up the bridge pickup, and give the neck pickup a really round jazzy tone. I was inspired by the tone switch on my Duo Jet. With the PP down, I have a 22nF on the bridge tone control, and a 47nF on the neck.
ratherdashing
Kablamminator
Re: Lockwire Rosa - custom built for me by pinto79 - progress thread
Side note: I'm quite liking these new push-push pots. I was initially skeptical because I've used some really crappy push-pushes in the past, but these are very rugged and have a smooth, sturdy button action.
Side note: I'm quite liking these new push-push pots. I was initially skeptical because I've used some really crappy push-pushes in the past, but these are very rugged and have a smooth, sturdy button action.
ratherdashing
Kablamminator
Re: Lockwire Rosa - custom built for me by pinto79 - progress thread
They don't have a brand mark on them unfortunately. They came from Allparts. They have the same thread/bore as a CTS so it might be that, but I am not really sure.
They don't have a brand mark on them unfortunately. They came from Allparts. They have the same thread/bore as a CTS so it might be that, but I am not really sure.
ratherdashing
Kablamminator
Re: Lockwire Rosa - custom built for me by pinto79 - progress thread
I like versatility that's useful. That's the key. Every setting on this guitar is useful to me for something. I may not use every possible setting in a show or album, but I do like to have a lot of tones to choose from.
I have a couple other Strats with super-versatile switching and I don't use half of the switch settings ever. That's what I wanted to avoid with this guitar. I already know I'll use all 10 pickup combinations for one thing or another, and the tone switch is just a nice enhancement to that.
I like versatility that's useful. That's the key. Every setting on this guitar is useful to me for something. I may not use every possible setting in a show or album, but I do like to have a lot of tones to choose from.
I have a couple other Strats with super-versatile switching and I don't use half of the switch settings ever. That's what I wanted to avoid with this guitar. I already know I'll use all 10 pickup combinations for one thing or another, and the tone switch is just a nice enhancement to that.
youngthrasher9
New member
Re: Lockwire Rosa - custom built for me by pinto79 - progress thread
What magnet are you going to use in the bridge pickup? I was actually thinking of making a similar hybrid for project that I might do.
What magnet are you going to use in the bridge pickup? I was actually thinking of making a similar hybrid for project that I might do.
ratherdashing
Kablamminator
Lockwire Rosa - custom built for me by pinto79 - progress thread
MJ put an A5 in it.
MJ put an A5 in it.
youngthrasher9
New member
ratherdashing
Kablamminator
Lockwire Rosa - custom built for me by pinto79 - progress thread
Woo!
We are almost there!
Woo!
We are almost there!
Re: Lockwire Rosa - custom built for me by pinto79 - progress thread
That's the best copper shielding job I've ever seen.
Trevor had never shielded a body before, so yesterday I showed him how I did it on my Strat. He did an even better job than I would have.

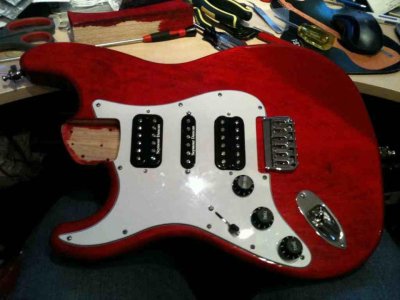

Also, I guess this is the first time I've posted the body with the finish on it. I'm very happy with how it turned out. Sorry I don't have any better pics at the moment.
View attachment 41146
Trevor is now doing the finish on the neck. I'll be wiring up the pickguard myself while he does that. (the wiring I wanted is fairly challenging, so I figured it would be easier to do it myself than explain it to someone else).
That's the best copper shielding job I've ever seen.
Re: Lockwire Rosa - custom built for me by pinto79 - progress thread
Oh, yes! OH, YES!!! OH, YES!!!!!!!
I feel myself getting close.
Oh, yes! OH, YES!!! OH, YES!!!!!!!
I feel myself getting close.
Shadow1psc
New member
Re: Lockwire Rosa - custom built for me by pinto79 - progress thread
I can't wait to see the finished product there, that looks amaze-balls.
I can't wait to see the finished product there, that looks amaze-balls.
ratherdashing
Kablamminator
Re: Lockwire Rosa - custom built for me by pinto79 - progress thread
It's done. I have it.
You're going to have to wait a bit for pics though. Sorry. I have some crap pics that don't do it justice. Nice pics coming very soon. I pinky swear.
First impressions:
- Looks perfect.
- This is the most comfortable-to-play guitar I own by a long shot.
- Best fretwork I've ever seen. Holy crap. Bends are effortless and never lose sustain.
- There is a definite Tele-like snap to this guitar. I assume that's due to the string-through bridge and the swamp ash body.
- Neck and bridge tones are exactly what I hoped for. Notch tones aren't quite what I expected. Might be a phase issue.
It's only had strings on it for 24 hours, and I'm still getting used to it, but I already love it.
It's done. I have it.
You're going to have to wait a bit for pics though. Sorry. I have some crap pics that don't do it justice. Nice pics coming very soon. I pinky swear.
First impressions:
- Looks perfect.
- This is the most comfortable-to-play guitar I own by a long shot.
- Best fretwork I've ever seen. Holy crap. Bends are effortless and never lose sustain.
- There is a definite Tele-like snap to this guitar. I assume that's due to the string-through bridge and the swamp ash body.
- Neck and bridge tones are exactly what I hoped for. Notch tones aren't quite what I expected. Might be a phase issue.
It's only had strings on it for 24 hours, and I'm still getting used to it, but I already love it.
