Need help for Slash Alnico 2 Pro’s wiring.

[weikath]

Need help for Slash Alnico 2 Pro’s wiring.



I’ve got these pickups today, found that its was one conductor pickup. I’ve tried to find the wiring diagram for these pickup types in seymourduncan’s site and I found out nothing about one counductor pickup. Could anyone give me any information how to wiring this kind of pickup?

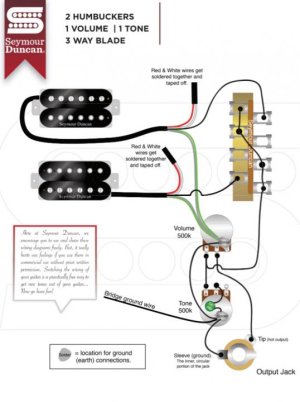

I want to do exactly like this diagram 2 Humbuckers 1 Volume 1 Tone with 3 Way Blade Switch. No Coil Split



[allbutromeo]

Re: Need help for Slash Alnico 2 Pro’s wiring.

Re: Need help for Slash Alnico 2 Pro’s wiring.

The core wire will go to the switch, the metal braid solder to the back of the pot.



[weikath]

Re: Need help for Slash Alnico 2 Pro’s wiring.

Re: Need help for Slash Alnico 2 Pro’s wiring.

The core wire will go to the switch, the metal braid solder to the back of the pot.

Thank for you help, I will try to do it.



[Mincer]

Re: Need help for Slash Alnico 2 Pro’s wiring.

Re: Need help for Slash Alnico 2 Pro’s wiring.

Think of it like this...the metal braid is the green & bare wire. The core is the black wire. You don't have red & white wires which are taped off here, anyway.
