Questions about my 'Do It All' Wiring

ArtieToo said:
I'm pretty sure it would, but let me sleep on it. It would change the polarity of both pups, but since both get changed, the wiring itself should stay the same.

But let me confirm tomorrow. I just moved from my desktop to my laptop, and my reference drawings are on the desktop. And obviously, others can answer. Jack? :)
Click to expand...

I agree the wiring would still work, but the fact that each pickup would be reverse wired with regards to all 4 coil's true electrical polarities, would irk me personally. And probably cause me or anyone confusion years later when we forgdt why it was wired like that and we needed to work on that guitar, e.g. replace a pickup, replace the switch, etc.

Last edited:
Jack_TriPpEr said:
I agree the wiring would still work, but the fact that each pickup would be reverse wired with regards to all 4 coil's true electrical polarities, would irk me personally. And probably cause me or anyone confusion years later when we forgdt why it was wired like that and we needed to work on that guitar, e.g. replace a pickup, replace the switch, etc.
Click to expand...

Especially if the replacement pickup going in in the future does not use Duncan wiring color codes.

Jack_TriPpEr said:
Spotted the problem.

On the pole of the superswitch where the Neck pup Series Link Pair is attached to the Common of that pole, the destinations of lugs 2 and 4 need to be reversed. Lug 2 needs to goto Ground, and lug 4 needs to goto Hot.

Also, I am assuming that for the Neck pickup, you are using Green wire as Hot and Black wire as Cold because you said that the Neck pickup is a RWRP type.

Let me know how that mod wotks.
Click to expand...

OK, flipping the 2 and 4 lugs seems to have kept it hum-cancelling, but I haven't tested to see if I got inner and outer coils. I am guessing that my neck pickup isn't rw/rp, but just has a magnet flip.

How does it differ from Artie's new diagram above?

Mincer said:
OK, flipping the 2 and 4 lugs seems to have kept it hum-cancelling, but I haven't tested to see if I got inner and outer coils. I am guessing that my neck pickup isn't rw/rp, but just has a magnet flip.

How does it differ from Artie's new diagram above?
Click to expand...

See replies # 74 and # 81

Mincer said:
OK, flipping the 2 and 4 lugs seems to have kept it hum-cancelling, but I haven't tested to see if I got inner and outer coils. I am guessing that my neck pickup isn't rw/rp, but just has a magnet flip.

How does it differ from Artie's new diagram above?
Click to expand...

Actually, my last reply did not fully answer your question.

Artie and I concluded that your original diagram works if either of the pickups is Reverse Polarity *AND* Reverse Wound (RWRP).

However, if either of the pickups is Reverse Polarity ONLY (i.e. mag flip only), then either of the diagrams in replies # 64 or #76 will work.

Reply #74 has info about your neck pickup being Reverse Polarity only, not RWRP.

Last edited:
And Mincer, do your PA's have logo's. I'm still curious about the orientation of the neck pup, since you can't tell by the usual pole-piece method.

ArtieToo said:
And Mincer, do your PA's have logo's. I'm still curious about the orientation of the neck pup, since you can't tell by the usual pole-piece method.
Click to expand...

Both covered pickups have small logos in the corner. BTW, looking at my notes, it looks like I had originally specified rw/rp in my order, so that is entirely another issue.

So Artie's new diagram will solve this. I will change the bottom left destinations of lugs 2 & 4 (post 76). I will do this today and report back. Thank you guys for straining your brains for this mystery. I learned a lot from reading through these responses.

beaubrummels said:
Doesn't the logo match the baseplate orientation? Can just look at the baseplate, no?
Click to expand...

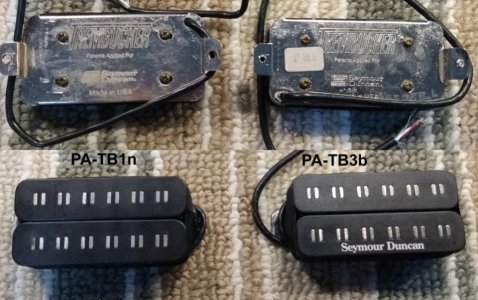

That's the problem. My PA-TB1n has no logo. But I'm pretty sure that these are meant to be mounted with the "Trembucker" stamping reading right-side up. Even though it's on the bottom. That orients the cable exit properly and makes the inside coils the B/W wires.

P.S. It's nice that my Blues Saraceno is wound by MJ. :)

Click image for larger version Name: PATB-1-3.jpg Views: 0 Size: 96.9 KB ID: 6088338

Last edited:
Mincer said:
Both covered pickups have small logos in the corner. BTW, looking at my notes, it looks like I had originally specified rw/rp in my order, so that is entirely another issue.

So Artie's new diagram will solve this. I will change the bottom left destinations of lugs 2 & 4 (post 76). I will do this today and report back. Thank you guys for straining your brains for this mystery. I learned a lot from reading through these responses.
Click to expand...

Mincer,

yes, the diagram in Reply #76 is what you'd use, given how you already have your pups wired (neck green wire as hot wire for that pup).

However, it seems you said in Reply # 84 that you already made the swap btw lugs 2 and 4. :confused:

Jack_TriPpEr said:
Mincer,

yes, the diagram in Reply #76 is what you'd use, given how you already have your pups wired (neck green wire as hot wire for that pup).

However, it seems you said in Reply # 84 that you already made the swap btw lugs 2 and 4. :confused:
Click to expand...

Sometimes forums aren't the best way of communicating...haha! Yes, I swapped 2 & 4 of your diagram, but I think I had those going straight across, rather than bottom #4 going to top #2, and bottom #2 going to top #4.

Mincer said:
Sometimes forums aren't the best way of communicating...haha! Yes, I swapped 2 & 4 of your diagram, but I think I had those going straight across, rather than bottom #4 going to top #2, and bottom #2 going to top #4.
Click to expand...

Yep, they should not go straight across.

Mincer said:
Just for curiosity, what happens if they went straight across?
Click to expand...

You'd have upper/lower coils, rather than inside/outside. But because of the RP mag and reverse wiring, they wouldn't be hum-cancelling. Straight up and down is what you'd do if the pups, and wiring scheme, were bone stock.

P.S. Now that it works for you, I may give it a try also. I have everything I need right here.

ArtieToo said:
You'd have upper/lower coils, rather than inside/outside. But because of the RP mag and reverse wiring, they wouldn't be hum-cancelling. Straight up and down is what you'd do if the pups, and wiring scheme, were bone stock.

P.S. Now that it works for you, I may give it a try also. I have everything I need right here.
Click to expand...

Ahhh, gotcha! Learn something new every time I talk to y'all! Thanks for sorting this out, and also providing a working diagram!!
