TinPan
New member

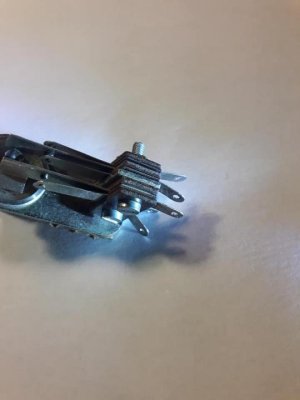

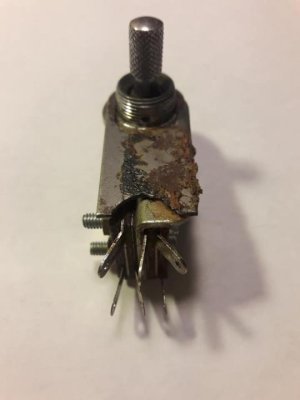

I found the correct schematic for this Hagstrom Swede, Please take a look at these 3 photos one being the new schematic and 2 photos of the actual 3 way "tone" toggle switch. What I need help with is numbering the 6 lugs on the switch and advice on which lug receives the output from the 3 way pickup selector switch, and which lug or lugs are the output to "tip" and which lugs are soldered together and lastly which lugs do I connect the 2 caps 1@4700pf and 1@0.015uf. I have made several experimental attempts but no tone change.
