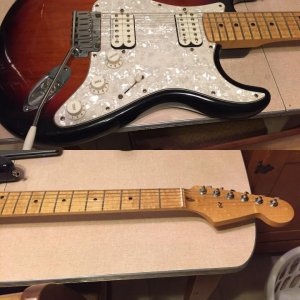

Warmoth one-piece maple neck, satin nitro finish. Fender 2001 American Series Double Fat Strat body.
Warmoth one-piece maple neck, satin nitro finish. Fender 2001 American Series Double Fat Strat body.
MkIII Renegade
New member
Re: The Warmoth Club
One of the coolest Warmoths I've seen in a long time! Nice choices....
Here's my Warmoth I built probably 15 years ago from parts on eBay. It's inspired by the PRS triple P90s they used to do. Kind of like the proverbial Strat on Steroids, it's my P90 guitar until I can finally get a real SG or Les Paul with P90s.
It's a Hot (B) Bridge, Vintage (N) Middle and Vintage (B) Neck for hum cancelling in the mid positions.
One of the coolest Warmoths I've seen in a long time! Nice choices....
PFDarkside
of the Forum
treyhaislip
New member
Re: The Warmoth Club
Probably one of my favorite threads on this forum–so many cool projects posted here!

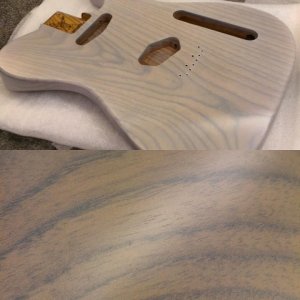

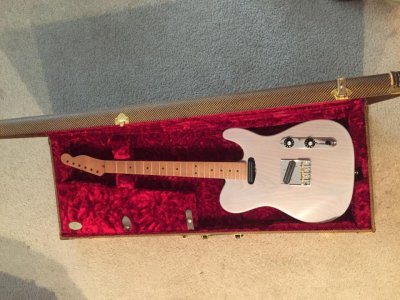

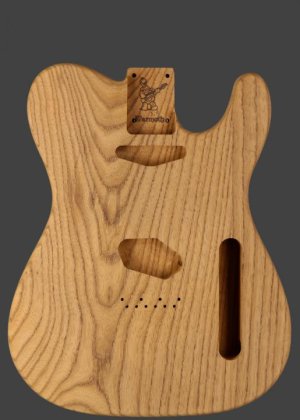

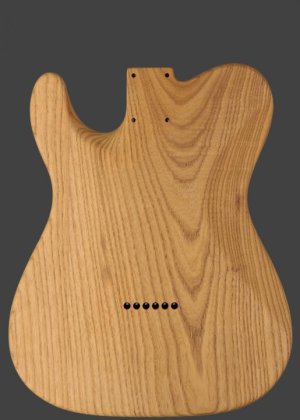

My current Warmoth project: Roasted Swamp Ash body and Roasted Quartersawn Maple neck. The body and neck weigh in just under 5 lbs (without hardware.)
Finish is a super thin nitro in Mary Kay White...Roasted Swamp Ash is very dark so the color is darker than your normal Mary Kay White on Ash.
If you do a Tele, I highly recommend the Tummy Cut and Forearm Contour (the Contoured Heel is nice too.)
Probably one of my favorite threads on this forum–so many cool projects posted here!
My current Warmoth project: Roasted Swamp Ash body and Roasted Quartersawn Maple neck. The body and neck weigh in just under 5 lbs (without hardware.)
Finish is a super thin nitro in Mary Kay White...Roasted Swamp Ash is very dark so the color is darker than your normal Mary Kay White on Ash.
If you do a Tele, I highly recommend the Tummy Cut and Forearm Contour (the Contoured Heel is nice too.)
treyhaislip
New member
Re: The Warmoth Club
Thanks! With the caramel body color and MKW paint mixture it has a lot more of the "blues" coming thru than my previous MKW bodies.
Thanks! With the caramel body color and MKW paint mixture it has a lot more of the "blues" coming thru than my previous MKW bodies.
Liko
New member
Re: The Warmoth Club
Finally joining the club, after years of evenings spent looking at the designer and working with circuit diagrams on Visio.

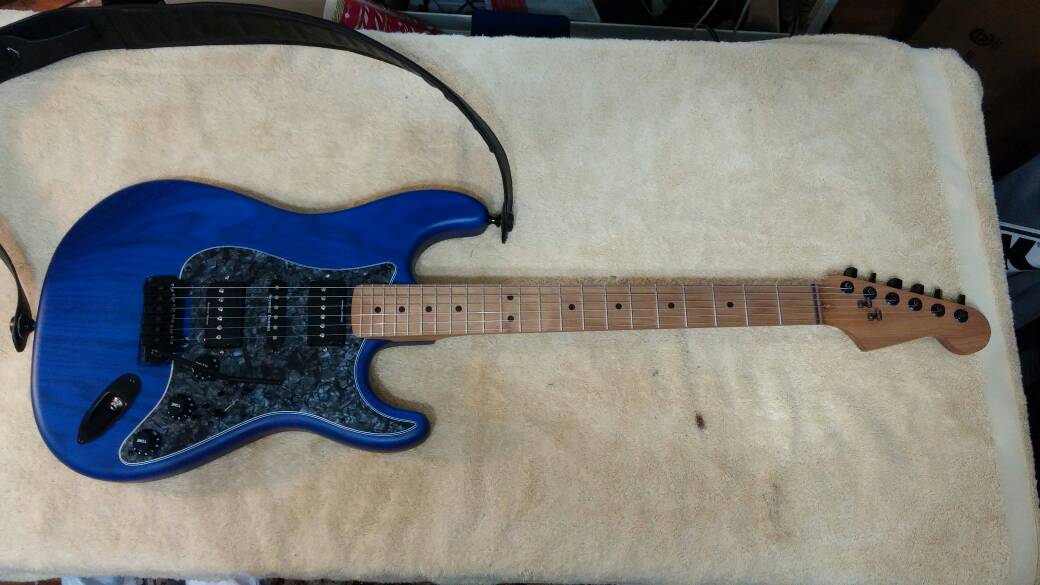

She's swamp ash, with a roasted maple neck, finished in satin trans blue. Wilkinson trem, contoured heel, and a beast of a wiring job involving four mini DPDTs, three push-push pots, two P-Rails and a Classic Stack. She has a lot, I mean a lot, of good sounds in her, from classic Strat to LP to Goldtop and a hint of Tele.
