Guys with 3-Humbucker Guitars

Re: Guys with 3-Humbucker Guitars

A middle pickup tends to disturb my kind of playing. With my picking technique i tend to collide with the humbucker ring or with the staggered pole pieces on strat style guitar. Neither i feel the need of a third kind of tone. Just my 2 ct.

Re: Guys with 3-Humbucker Guitars

The A-series of the Teye guitars are all triple buckers, and some known players use those guitars.

My biggest gripe is that its so difficult to have a useful wiring with 3 pickups, on a les paul, if you don't want to mod it like crazy. IMHO a 3 pickup les paul is ONLY useful with a 5 way superswitch (so the middle position is always neck+bridge, not only middle) with assignable volume pots, like Teye guitars. That 3 way toggle with the 4 pots is just useless with 3 pickups, and Really, I've tried it all.

For 3-pickup guitars, my favorite switching is the basic original Stratocaster-type 3-way switching. You can either have the neck pickup alone, the middle pickup alone, or the bridge pickup alone. I don't often care for the "in-between" settings.

Re: Guys with 3-Humbucker Guitars

For 3-pickup guitars, my favorite switching is the basic original Stratocaster-type 3-way switching. You can either have the neck pickup alone, the middle pickup alone, or the bridge pickup alone. I don't often care for the "in-between" settings.

it depends, I think? if you want that quacky thing, you need that middlepickup...

Re: Guys with 3-Humbucker Guitars

I use the three humbuckers excessively on my custom HHH Gibson SG. For the pups, I use a JB (SH-4) in the bridge, Duncan Custom (SH-5) in the middle, and a Distortion (SH-6) in the neck. The three blend together to give you a sound that's great for mids, and combined with my MXR pedals, it's a metal machine. The wiring pattern is 3 volume pots, one master tone pot, and on/off toggles on each pickup. Easy to manipulate and ultra high output. Hope this helps you in any way. Keep on playing.

Re: Guys with 3-Humbucker Guitars

I dont see the point in putting something like a Custom in the middle. There is no way that sounds as good as the bridge JB for metal rythm and soloing, OR as good as the neck Distortion for metal soloing.
So whats the point?

Re: Guys with 3-Humbucker Guitars

Only four of my guitars even have middle pickups:

1.) a single-coil (DiMarzio Breed, in an Ibanez JEM)
2.) a stacked hum-cancelling single-coil (DiMarzio YJM in a Strat)
3.) an active single-coil (EMG SA in an Ibanez RG270DX)
4.) a side-by-side single-coil-sized humbucker (Duncan Hot Rails in a Jackson Soloist)

And I don't use them much. If anything, they get switched on in parallel with the neck pickup (or just a coil from each) for Strat-like tones. Sometimes I play the Hot Rails in humbucking mode, by itself. It's a nice jazz sound, surprisingly -- just the right amount of clear and warm. But as Rick mentioned, it doesn't sound anything like the Hot Rails that's in the neck position of that same guitar.

Contrast that with the eight guitars of mine with H-H configuration. I'd rather have that and a three-way switch, or a Super Switch. I pick between the pickups a lot, and sometimes a middle pickup does get in my way. Aesthetically, I like to see some pickup-free guitar between the neck and bridge.

Re: Guys with 3-Humbucker Guitars

My biggest gripe is that its so difficult to have a useful wiring with 3 pickups, on a les paul, if you don't want to mod it like crazy. IMHO a 3 pickup les paul is ONLY useful with a 5 way superswitch (so the middle position is always neck+bridge, not only middle) with assignable volume pots, like Teye guitars. That 3 way toggle with the 4 pots is just useless with 3 pickups, and Really, I've tried it all.

+1. That's another factor; factory wiring on HHH's. It's pitiful. 6 coils lined up in a row, and you only have a 3 way toggle. If you had push-pulls for coil cut on each PU, you could pair up different combinations of coils and get something interesting.

On my SG Custom, I have the bridge HB wired for coil cut and phase (on it's own dedicated volume and tone). The neck HB and middle P-90 share a blend pot for volume and a push-pull tone for coil cut. I think there's around 30 PU combinations, plus infinite blending with the the independent volume control/blend pot. Is this overkill? Yes. Certainly much more than the vast majority of players would want. It's at the other end of the spectrum from factory wiring, which offers so little.

Re: Guys with 3-Humbucker Guitars

I dont see the point in putting something like a Custom in the middle. There is no way that sounds as good as the bridge JB for metal rythm and soloing, OR as good as the neck Distortion for metal soloing.
So whats the point?

Because he likes it and you, who very likely hasn't even tried it in his exact setup and for the sound he wants, do not think you would. Of course those pups won't sound the same as they do in the bridge or neck positions, but to say they don't sound as good is completely subjective and not a reason to avoid trying it, if you're open to such changes and like tonal options. However, it is reasonable to advise someone not to expect a pup in the middle to give the same tone as it would give in other positions.

My point is that if you don't agree with it, you either 1) haven't even tried it, or at least tried the exact setup others have found useful, and are ok with just relying on what you've read about it and making speculations about it 2) you're just not the type who likes a lot of options and variety, and that's fine, or 3) you've tried it and the tone or physical position just isn't for you, and that's fine.

The tones I get by mixing the neck and middle while both are in parallel or mixing the parallel middle with the series bridge are unique, without any kind of weird characteristics, and are like having a second guitar, only now I don't need one to get that tone (which a second guitar with standard positions wouldn't provide anyway). Without it, it doesn't exist on this one guitar. What could be better? I know, setting both neck and middle to single and blending them, to get a clearer, more open sound, etc.

When I get tired of that, I just revert to using just the bridge in series alone or just the neck in parallel alone, which are what I use the most, simply because they respond better to high gain, which is the gain level I spend the more time in. If I spent all my time playing clean or mildly dirty, I'd actually spend more time on the neck and middle with this guitar.

All of my options are noticeably different, so I'm very pleased with it. Does this mean every new guitar I get will go this route? Maybe, but only if they use a plastic pickguard and have a large cavity like the Parker does.

My next project is a warmoth solist with basswood body, maple top, and mahogony neck. It will use just two humbuckers (likely a PATB2 in the bridge and, gasp, a JB in the neck; not sure yet) because the electronics cavity is smaller than the parker, I don't want to drill it larger, and the pup mounting includes a plastic rim box that plastic pickguards don't require, meaning an extended edge to get in the way; I have just enough clearance with the Parker where the middle doesn't bump me.

Re: Guys with 3-Humbucker Guitars

My point is that if you don't agree with it, you either 1) haven't even tried it, or at least tried the exact setup others have found useful, and are ok with just relying on what you've read about it and making speculations about it 2) you're just not the type who likes a lot of options and variety, and that's fine, or 3) you've tried it and the tone or physical position just isn't for you, and that's fine.

I, and some others here, would fall under your categories 2 and 3. We've tried middle HB's, weren't impressed (and it certainly didn't justify trying a number of different HB's in the middle slot), and instead prefer other ways to get our PU/tone variety.

Re: Guys with 3-Humbucker Guitars

yes. i have an original PAF in the middle of my Mustang. it along with the Schaller S6 single coil in the bridge screams. i like the middle position because it's not as shrill as the bridge position, but not as muddy as the neck position. perfect.

it's not mounted dead center - it's actually just a little closer to the bridge than dead center.

Re: Guys with 3-Humbucker Guitars

it took me literally years to find out I like a superclean middle pickup, and low output at best. the lower the output, the quackier the tone, strangely enough. on a les paul, anyway.

Re: Guys with 3-Humbucker Guitars

First, let me say everyone likes different set up types. A year or so ago, I did a mod on a Ibanez I had lying around. I put in 3 HB's, A Invader bridge pu in the bridge position, a Pearly Gate bridge in the middle position, and a Pearly Gates neck in the neck position. I also used 3 Triple Shot pick up rings. And used 3 on/off/on switches for on/off phase reversal.

I love this setup!!!

I get many different tones with the combination of parallel/ series and out of phase modes.

Yes I do us the middle position by it's self. And get great tones series or parallel.
The PG sounds much different from the Invader (as we all know the Invader has a ceramic magnet). No mud, no harsh high end, nice and smooth. And combine the Invader with the PG in the middle pure Rock!!!

The results are my avatar.

Don't know if this for everyone, but I dig all the tonal combinations possible with this set up!!!

Love the Triple Shots!!! Thanks SD.


AlleeCat

Re: Guys with 3-Humbucker Guitars

I have a 1985 Westone Spectrum LX (H/S/H) that I recently upgraded to H/H/H. Here's my setup:

  • SH-2 Jazz Model (Neck)
  • STK-S2 Hot Stack for Strat (Center)
  • SH-4 JB Model (Bridge)

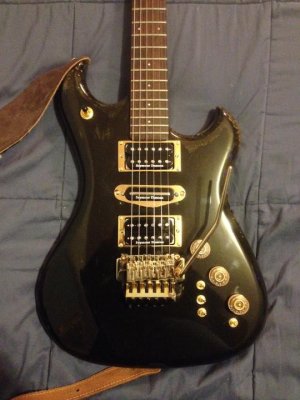

Westone Spectrum LX (18) After.jpg
(I call it "The Phoenix" because it went through a fire and "rose from the ashes." It's been refinished with clear over the fire damage, making a unique look... you can see some of it on the lower horn in this pic)

I wanted to use a single-coil sized humbucker for the center because that's the size that was already there, and landed on the STK-S2 because: a) it sounded so much different than the SH's and b) it sounded very "single-coily" to me anyway.

I added three 3-way minis for series/split/parallel (one for each pickup) and the pots are all push/pulls:

  • Neck: pot is master volume, switch is neck/bridge pups cut
  • Center: pot is neck tone, switch is center pup on
  • Bridge: pot is bridge tone, switch is bridge phase reverse

The normal 3-way pickup selector (upper horn) works between the bridge and neck, and with this setup I can choose any of the pickups individually, paired in any combination, or even all three... and use any of them as humbuckers, single-coils, or in parallel... in any combination. I went a bit overboard on options... and I knew I was doing it at the time... but I really didn't know what I would like, so I wanted to have all the choices. I like the fact that I can have my standard H-H setup by simply not using the center, but I also like having the option of the "quacky" tones from the center pickup. I've only had it this way for about a month, but I'm finding that I like the center pickup better with the bridge pickup than with the neck, and I'm also finding that I like the using the center best when the other pickup that it's paired with is in split or parallel mode.

In the end, it comes down to what you like. There's nothing wrong at all with wanting to have the KISS (Keep It Simple, Stupid) mentality toward your setup... I have it on my Ibanez Artcore AS83 (two humbuckers, a 3-way, & 2vol/2tone... nothing fancy) and I love playing that guitar too. But if you like having options available, and you don't mind having your setup get a little more complicated, you can have tons of 'em! The only person it really has to make happy is you!

In case anyone's curious. the other switch (next to the bridge pot) is a 3-way varitone (.005uF, .022uF, .047uF). The jury is still out on whether or not I like it.

Re: Guys with 3-Humbucker Guitars

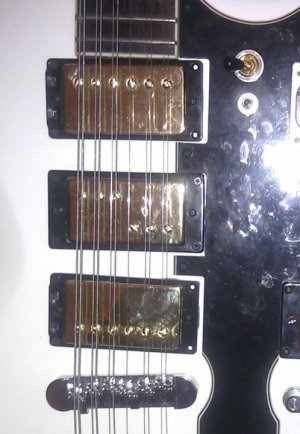

This is the only thing I have with 3 humbuckers, but is only ever used for clean sounds, and is 12 string. The center 3+3 is in parallel, and can be turned off, as well as switching the coils around. The Toneriders are in Triple Shots, so it's all very useable, to my ears anyway. Mind you, it's a 20 fret neck, so they're spaced out more than a Les Paul, or SG :)

IMAG0092 cropped.jpg

Re: Guys with 3-Humbucker Guitars

I used to have a string thru Jackson Stealth that was HHH configuration. I had this grand idea of millions of tones and wired each pickup with a series/parallel/split switch. What a rats nest of wiring it was in the cavity. Had a Super distortion in the bridge a PAF pro in the middle and a 59 in the neck. Then after a couple of years playing it and only using either the bridge or neck pickup with once in a while using the series parallel option figured out that it was all pretty much wasted.

Used to get a lot of ooooohs and ahhhhs from other guitar players though when messing with it. But in reality the other tones other than being novel for about 5 minutes really werent good for anything.

I understand... and I figure that my great experiment with "The Phoenix" will end up showing me some of the same things. I even considered not doing all the mods because of it... but it was fun and I get to learn a lot about what I like by finding out the sounds I end up gravitating to. I'm guessing that my next big guitar project will be much simpler once I've weeded out the options I don't ever use! :)

Re: Guys with 3-Humbucker Guitars

I built a 3 HB Gibson LPJ last year. I used StagMags in neck and middle. I put a DD in the bridge. All 3 HBs have Triple Shot pup rings as well as all 4 knobs (3 vol, 1 tone) are Push-Push. I did mostly to get stratty tones out of a Les Paul. I accomplished what I was after. I will say that the Middle HB alone has a pretty neat Lead Tone, I use it on occasion. Think Woman Tone, but without using the 2 pickups with one tone down and one tone up. As far as Middle HB in unison with the Neck or Bridge HB it's not that impressive, it works much better when in Single Coil Mode. If you don't want the option of coil splits, I guess the Middle with Neck or Bridge can get close to a Strat Quack, but definitely keep the option to have Middle HB alone. Like as was mentioned earlier, the stock 3 HB Gibson guitars do not leave with a lot of usable options. I also have to Phase switches so I can get an infinite amount of Out of Phase tones too, this gets me into Brian May territory.
