Inner + outer coil split on one push pull pot

[marker853]

How can I wire a inner + outer coil split on one push pull pot.

Outer coil split (adjustable screws) for Neck Humbucker
Inner coil split (Slug) for Bridge Humbucker

My guitar has 2 volume 1 tone.
I already have out of phase wired on the second volume push pull pot.

I have searched all over the interwebs and cannot find anything with dual inner outer coil split diagrams/wiring

Can anybody help me?



[Chrisp]

Re: Inner + outer coil split on one push pull pot

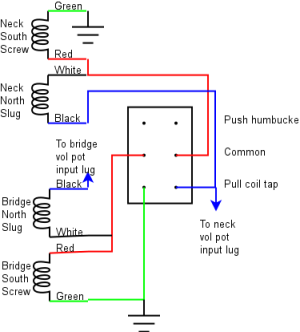

To answer your direct question, the diagram below shows how to do it.

Having an out of phase switch complicates matters. Have a look at the "Quick question about dual coil split" thread and the GuitarElectronics diagram in the first post. When in phase and coil tapped, that diagram shows the two back coils active, the middle/off/on line in the 2nd post, which is the opposite of what you want. Following the GuitarElectronics diagram, you want to wire your neck pickup like the bridge pickup and vice versa. Imagine turning that diagram upside-down.



[marker853]

Re: Inner + outer coil split on one push pull pot

To answer your direct question, the diagram below shows how to do it.

Having an out of phase switch complicates matters. Have a look at the "Quick question about dual coil split" thread and the GuitarElectronics diagram in the first post. When in phase and coil tapped, that diagram shows the two back coils active, the middle/off/on line in the 2nd post, which is the opposite of what you want. Following the GuitarElectronics diagram, you want to wire your neck pickup like the bridge pickup and vice versa. Imagine turning that diagram upside-down.

The "quick question about dual coil splits" is also my thread lol I tried to reword it to make it easier to understand with this one.
I think I understand now, so would I have to jump the north start wire from the out of phase to the coil split switch seeing as both switches need that wire?



[blueman335]

Re: Inner + outer coil split on one push pull pot

Also known as 'Artie's Coil Swap Mod.'
