Introducing the HyperSwitch!
- Thread starter Mincer
- Start date
TVFV
New member
Is that what they meant by parallel out of phase?
Yup.
TVFV
New member
I didn't know the coils were OOP when they were in parallel.
TVFV
New member
You're fine. I just don't why they just didn't say parallel. The OOP part just adds confusion IMO.
Artie
Peaveyologist

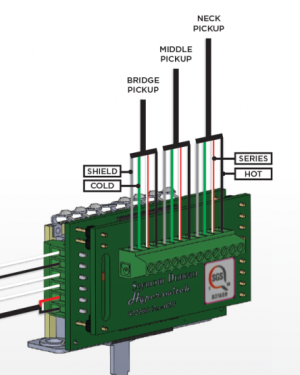

Sorry Dave. I don't mean to argue with you, but look at the wiring instructions. (It's a separate PDF.) Red & white are tied together. That makes it impossible for the pup to be in "normal" parallel. They can ground red/white, then connect black & white together for "hot." Or vice-versa. They can't make red hot and white ground.
That's why page 3 calls it "parallel out-of-phase", which just isn't a useful sound. The two coils are so close together, you get almost total cancellation. It will sound terrible. IMHO. :cool2:
larryguitar
New member
I'm all for technology, but just NOT in a guitar; I don't want to use an app to set up my guitar, sorry. If this had some type of manual switch I'd be very interested, but I'm not @#%$ing around with an app when I want to play...
Larry
Larry
You don't have to. You set the switch up once, and never have to access the app again.
eclecticsynergy
Well-known member
My beef is needing batteries in a guitar with passive pickups. Great for chronic tinkerers.
But, like Top-L, I'd use a Superswitch once I found the configurations I wanted.
But, like Top-L, I'd use a Superswitch once I found the configurations I wanted.
Rex_Rocker
Well-known member
OK, but does it do bridge straight to output, no volume and no tone?
OK, but does it do bridge straight to output, no volume and no tone?
Obviously not, or the switch couldn't control it.
Mikelamury
New member
I plan on getting one for my strat that has 3 humbuckers. I noticed today that Sweetwater just happens to be offering 150 bonus bucks with the Mark V that I'm about to purchase so I think I will be using those bonus bucks from the amp for the hyper switch.
Rex_Rocker
Well-known member
I was just being silly, hahaha. It is a very neat idea for the people that want that kind of versatitlity. Killer invention, TBH.
It has been available as a Sweetwater exclusive for the last month, but should be in wide release now.
beaubrummels
Well-known member
OK, but does it do bridge straight to output, no volume and no tone?
You can bypass the tone controls at least.
I can also see it being useful to try out a bunch of combos in a guitar before hardwiring your favorites to a superswitch (if possible).
