Weller WES51 Soldering Station

[jrbowen81]

Help! I'm having trouble finding out which tips I need to get for this soldering station. The tip it came with is too oxidized and won't let the solder stick anymore. I believe the actual iron/pencil is called the PE51 or something like that. Everywhere I look online doesn't clearly show whether or not certain tips will be compatible.


Sent from my iPhone using Tapatalk



[hamerfan]

Re: Weller WES51 Soldering Station

Clean the tip with fine steel or sand paper and reflow it with solder.



[VanDerchuck]

Re: Weller WES51 Soldering Station

I use the ETO and the ETP. Does that help?



[Artie]

Re: Weller WES51 Soldering Station

Here's the manual in PDF format:

http://www.weller-toolsus.com/MagentoShare/media/mannuals/WES51_OI_PL.pdf

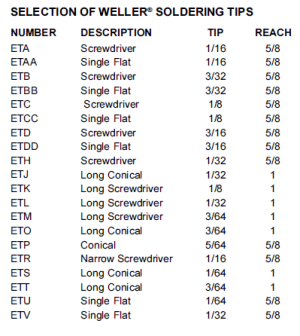

Page 6 shows a list of available tips, depending on the size and shape you want.

I just got a new one, myself, recently. Great station.

Here it is:



[jrbowen81]

Re: Weller WES51 Soldering Station

I use the ETO and the ETP. Does that help?

Sure, it's a good start!


Sent from my iPhone using Tapatalk



[jrbowen81]

Re: Weller WES51 Soldering Station

Here's the manual in PDF format:

http://www.weller-toolsus.com/MagentoShare/media/mannuals/WES51_OI_PL.pdf

Page 6 shows a list of available tips, depending on the size and shape you want.

I just got a new one, myself, recently. Great station.

Here it is:

View attachment 68751

Wow, thanks for that! I bet my manual
is around here somewhere. Didn't realize it listed the available tips!


Sent from my iPhone using Tapatalk



[jrbowen81]

Re: Weller WES51 Soldering Station

Clean the tip with fine steel or sand paper and reflow it with solder.

Hmmm... I've heard mixed opinions on doing that. Not quite sure.


Sent from my iPhone using Tapatalk



[Artie]

Re: Weller WES51 Soldering Station

Hmmm... I've heard mixed opinions on doing that.

Exactly. To quote from the manual:

Don’t try to clean tip with abrasive materials and never file the tip. To do so will greatly reduce tip life. Tip wettability
is affected by contact with organics; such as plastic resins, silicone grease, and other chemicals. If the tip be
comes unwettable, it may be cleaned hot with a soft steel or brass brush using solder flux as a solvent; or with a
Weller® WPB1 polishing bar (use only when the tip is cold). Do not over do this or the iron plating will be removed
and the tip ruined. Re-tin tip immediately after cleaning to prevent oxidation.

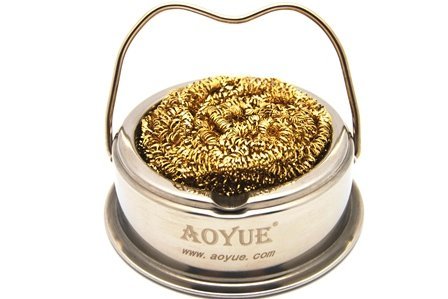

Clean the tip with one of these:
