How long does it take you to tune a Floyd Rose or floating tremolo?

[Artie]

Those blocks look sweet, but I think I could build one fairly easily. Although, $10 ain't bad. My time is probably worth that.

I think I'll try those FR Red's. That could be the ticket. The "green's" look fierce. https://floydrose.com/products/frtsn?_pos=1&_sid=c8193a8fa&_ss=r&variant=29837634194



[nexion218]

For 9-46 I had a red and two blacks combined if I recall well (switched to 10-46 since then). The reds are already pretty heavy so my guess is that those will be enough!



[Gtrjunior]

Those blocks look sweet, but I think I could build one fairly easily. Although, $10 ain't bad. My time is probably worth that.

I think I'll try those FR Red's. That could be the ticket. The "green's" look fierce. https://floydrose.com/products/frtsn?_pos=1&_sid=c8193a8fa&_ss=r&variant=29837634194

I have a set of reds in one guitar. Never tried the greens.
Yeah, the wood block thingy is probably easy as pie to make but like you said, for $10...why not just buy one.



[Artie]

I have a set of reds in one guitar. Never tried the greens.
Yeah, the wood block thingy is probably easy as pie to make but like you said, for $10...why not just buy one.

Well, this is my only Floyd equipped guitar. And the reason I'm fixin' her up is to sell her. On the other hand, I often do customers guitars that have an FR. So . . . :scratchch



[Artie]

The "Red" springs must be popular. They're sold out. And the titanium claw is listed as unavailable. That thing would have been cool.



[Gtrjunior]

The "Red" springs must be popular. They're sold out. And the titanium claw is listed as unavailable. That thing would have been cool.

Try eBay or Reverb. You can get authentic FR springs from an authorized dealer as well.



[Artie]

Thanks. I'll check that out.

BTW, StewMac has them but they charge $10 for shipping. These could be dropped in a bubble envelope for a couple bucks. I wonder if they know how much business they lose because of their shipping policy?

Sweet. Just got 'em on Amazon for $4.19. Apparently I had a credit that I didn't even know about.



[Demanic]

While I’ve got your attention....

What is the appropriate torque for the bridge string locking screws? I know they are easy to strip but I also don’t want strings letting go.

Finger tight. Not farmer tight.

Sent from my SM-A115A using Tapatalk



[Demanic]

And to amend the last statement, finger tight using the long end of the Allen key into the screw. And yes, let it set a bit, then snug up a 3/16 of a turn.

Sent from my SM-A115A using Tapatalk



[PFDarkside]

Finger tight. Not farmer tight.

Sent from my SM-A115A using Tapatalk

Haha I’m great at farmer tight.



[dzdandcunfsd]

Never even dawned on me to just count winder turns.........would of been a huge time saver, but don't even have anything with a floating trem anymore, I'm sure I'll have another someday though, good tip.



[Demanic]

Haha I’m great at farmer tight.

And farmer tight is great at doing other things. That's when you use a locking washer, teflon tape, red loctite and a torque wrench on the window bolts of a bathysphere. Or something of that sort.

Sent from my SM-A115A using Tapatalk



[Artie]

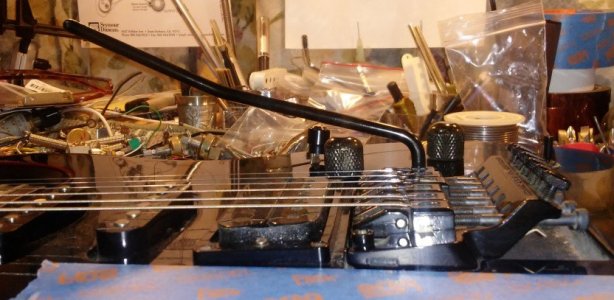

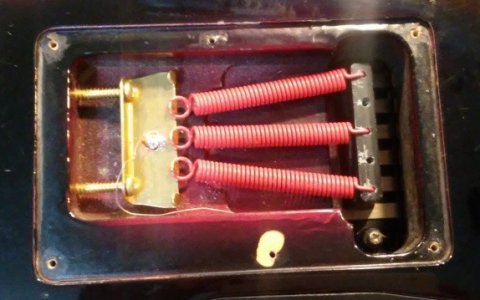

Well, the "red" noiseless springs are better. Three of them do what four regulars couldn't. And, with the trem claw not screwed in so far. (I also snagged the brass claw.) But there are still issues. The trem sits nice and flat with a real stable tune. But the trem arm is up in the air. If I palm the arm, I can barely touch the strings. This can't be right. I wonder if an Ibby Edge is supposed to be flat like an FR, or maybe have it's ass up in the air? Can anyone post a pic of a properly set up Ibanez Edge trem? This is a late 80's MIJ.



[Demanic]

Not to derail, but why do so many people use three springs in a triangle as opposed to something different?
Personally, I like using all five.

Sent from my SM-A115A using Tapatalk



[Artie]

Not to derail, but why do so many people use three springs in a triangle as opposed to something different?
Personally, I like using all five.

Sent from my SM-A115A using Tapatalk

The theory is, it's a teensy bit longer, by virtue of being the hypotenuse of a triangle, rather than the base. Therefore, a bit more tension. Mostly, I think, it's because it looks cool. (Even though no one will ever see it.)



[Artie]

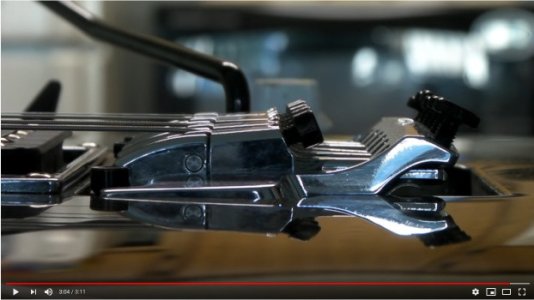

Well, shoot! I just watched an Ibby Edge trem setup vid, and his trem arm is even higher than mine!



[PFDarkside]

You’ve got all kinds of room to screw that claw in!

Baseplate flat, looks good. You can bend the bar closer to the body if you want.



[Gtrjunior]

Keep in mind that the edge trem in the vid is not the same model as yours.
You’re is an original edge the vid isn’t.
But, your trem angle looks good. Use that little notch to get it straight to the body.
As far as the bar angle, you can physically bend the bar to where you like it if you want but it’s angle is what it is. I have an edge and I feel like the bar is too close to the body. It hits the volume knob when I depress it.



[Artie]

This is interesting that you all are talking about actually bending the bar. I could do that, but it still makes me wonder how this thing came from the factory. If I was going to keep this for myself, I'd wedge a Jenga block in there, and call it a day. But I want to sell this thing, and I want it to be correct as possible for a potential buyer.

And PFD . . . the more I screw in the claw, the higher the arm goes. The opposite of what I'm going for.



[PFDarkside]

This is interesting that you all are talking about actually bending the bar. I could do that, but it still makes me wonder how this thing came from the factory. If I was going to keep this for myself, I'd wedge a Jenga block in there, and call it a day. But I want to sell this thing, and I want it to be correct as possible for a potential buyer.

And PFD . . . the more I screw in the claw, the higher the arm goes. The opposite of what I'm going for.

No, it’s good now, I mean with the lighter springs there’s still plenty of room to tighten more.

I miss the bar angle on the Floyd trademarked locking fender bridge I mentioned before. It was perfectly tight in the block, the angle kept it close to the body, spinning it around didn’t hit the body in the back, it was nice.
